[Updated March 27] The first of two  teleconferences hosted by the GPS Wing underlined the U.S. Air Force’s desire to gain greater participation by manufacturers of user equipment in sorting out the options for mitigating the effects of a signal anomaly on the GPS satellite known as SVN49.

The March 26 teleconference, held on the same day as publication of a notice in the Federal Register inviting public comment on nine possible options for dealing with the anomaly, drew only a handful of participants. But the U.S. Department of Transportation Research and Innovative Technology Administration (RITA), which issued the invitation, and the GPS Wing, which has the lead in implementing an eventual decision, hope to see further industry participation in written comments and a second teleconference planned for April 30.

[Updated March 27] The first of two  teleconferences hosted by the GPS Wing underlined the U.S. Air Force’s desire to gain greater participation by manufacturers of user equipment in sorting out the options for mitigating the effects of a signal anomaly on the GPS satellite known as SVN49.

The March 26 teleconference, held on the same day as publication of a notice in the Federal Register inviting public comment on nine possible options for dealing with the anomaly, drew only a handful of participants. But the U.S. Department of Transportation Research and Innovative Technology Administration (RITA), which issued the invitation, and the GPS Wing, which has the lead in implementing an eventual decision, hope to see further industry participation in written comments and a second teleconference planned for April 30.

Led by Lt. Col. James Blake, deputy chief engineer for the GPS Wing, the presentation underlined the Air Force’s concern that receivers that don’t conform to the  specification for GPS space segment/navigation user interfaces (IS-GPS-200) "greatly complicate the issue."

The "non-compliant" user equipment may have software that doesn’t use all the information in the GPS navigation message or that assumes currently unused frames of the nav message may be exploited by receiver designers — only to discover that future upgrades of the system software implemented by the GPS control segment will cause non-compliant equipment to malfunction.

"If you have made shortcuts or assumptions in [receiver] software
development, we want to know who you are and what you’ve done," Lake
said. "We really want to work with you."

Noting that manufacturers and users may have to live with the decision for the next 20 years — given the performance of Block IIR satellites now on orbit, Lake said, "We don’t want to implement a solution and then discover  there is a problem. We’ve done that before."

GPS SVN49 has a unique signal that may result in degraded performance for some GPS user equipment. This satellite currently operates with the navigational message set in an unhealthy state to prevent any adverse effects on users.

To minimize the adverse effects, several mitigations are under consideration. Each is intended for a specific user group and can be used with or without the other mitigations. All mitigations are intended for use with SVN 49 only, and no changes will be made regarding other GPS satellites.

The GPS Wing and 50th Space Wing at the GPS Master Control Station, Schriever Air Force Base, Colorado, hope to implement the SVN49 mitigation decision in June 2011 (see accompanying table of the proposed schedule for addressing the problem).

The mitigations, including some new approaches to the problem, are briefly described as:

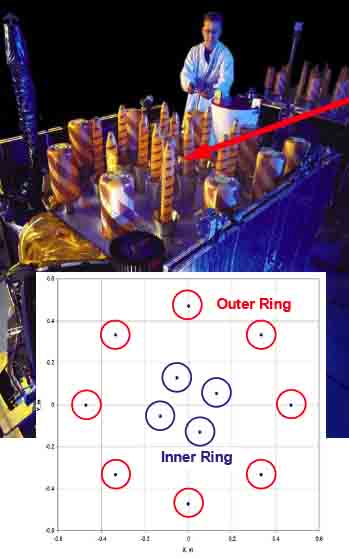

• Set SVN 49 healthy with current 152-meter Antenna Phase Center (APC) and associated clock offsets.
• Set SVN 49 healthy with factory default APC and clock offset.
• Users switch to multipath-resistant receivers to minimize adverse impact from SVN 49 signal.
• Modify receiver software to use look-up table corrections to account for unique SVN 49 signal.
• Increase SVN 49 User Range Accuracy (URA) minimum value to 3 by changing bits in the GPS data message that allow user equipment to de-weight or exclude SVN–49 signals.
• Remove data modulation from L2 P(Y)-code to mitigate impact to high precision users.
• Change L2C PRN code to a ‘‘unique sequence’’ to prevent L2C users from including SVN 49 in their solutions.
• Change SVN–49 from PRN–01 to PRN–32 to prevent updates to WAGE users.
• Use spare health code so future users could use SVN 49 despite unhealthy setting.

Written comments should be submitted by May 28, 2010 identified by RITA Docket ID Number RITA 2010–0002 and may be presented using any of the following methods:
• Federal eRulemaking Portal: Go to http://www.regulations.gov. Follow the online instructions for submitting comments.
• Mail: Docket Management Facility: U.S. Department of Transportation, 1200 New Jersey Avenue, SE., West Building Ground Floor, Room W12–140, Washington, DC 20590–0001.
• Hand Delivery or Courier: West Building Ground Floor, Room W12–140, 1200 New Jersey Avenue, SE., Washington, DC, between 9 a.m. and 5 p.m. ET, Monday through Friday, except Federal holidays.
• Fax: 202–493–2251.

The second GPS Wing teleconference on the mitigation options is scheduled for 4 p.m. on April 30.
The teleconference number is 1–800–366–7242; passcode: 6530000#.

An informational briefing prepared by Col. David Goldstein, chief engineer at the GPS Wing, may be downloaded as a PDF here. The PDF includes a template for comments that can be submitted to the docket. Karen Van Dyke, DoT/RITA’s acting director for positioning, navigation, and timing, emphasized that, although comments at the teleconferences will be recorded, these must be submitted in writing to the RITA docket in order to be considered officially.

The March issue of GNSS SIGNALS e-newsletter that will appear soon will have further details about the proposed SVN49 solutions and decision process.
