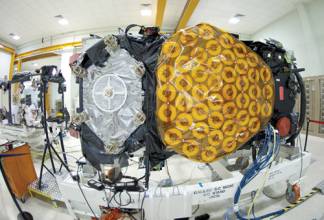

The Galileo In-Orbit Validation (IOV) ProtoFlight Model (PFM) and Flight Models (FM-2, FM-3 and FM-4) undergoing assembly and testing at Thales Alenia Space’s facility in Rome.

Contact!

First Acquisition and Tracking of IOV Galileo Signals

Navsas.jpgA photo of the NavSAS group (December 2011) (Click image to enlarge.)
Europe’s GNSS program — Galileo — launched two in-orbit validation satellites in October, the first elements of the system’s fully operational constellation. In this article, a team of Italian researchers present the initial results of their analysis of the Galileo signals.

Share via: SlashdotSlashdot   TechnoratiTechnorati   Contact! (Inside GNSS)TwitterTwitter   FacebookFacebook

On December 12, 2011, one of the two Galileo in-orbit validation (IOV) satellites launched on October 21 — the Galileo- ProtoFlight Model (PFM) spacecraft — started transmitting its payload signal on the E1 band over Europe.



That same day NavSAS researchers were able to acquire and track the E1 signal (Galileo Code Number 11) beginning at 14:46:15 CET. Two days later, on December 14, the E5 signal became available as well.

The E1 signal was received on December 12 at the Istituto Superiore Mario Boella (ISMB) premises (located in Torino, Italy) with a non-directive antenna, a commercial narrowband RF front-end, and a proprietary software receiver, developed by our research group. The team first received the PFM E5 signal on December 14, using a similar experimental setup.

In this article we will discuss the first acquisition and tracking of the signal broadcast by the Galileo-PFM satellite, on both E1 and E5 bands. We will describe the receiving equipment configuration and present our initial results on signal acquisition, tracking, data demodulation and joint PVT (position, velocity, time) solution as a first receiver-side validation of the new Galileo system.

Experimental Setup for Galileo IOV Acquisition
The radio frequency (RF) signal was received by means of two fixed, non-directional rooftop antennas, co-located at ISMB premises in Torino at the following coordinates: latitude = 45°03’54.99” N, longitude = 7°39’32.29” E, height = 311.97 meters.

The Galileo-PFM IOV navigation payload began by transmitting the E1 signal; so, our first acquisition and tracking test focused on this signal.

Using a commercial GPS/Galileo receiver front-end, the RF signal was filtered, amplified, and downconverted to intermediate frequency (IF) while also being converted to a digital format. The front-end features a bandwidth of approximately four megahertz and samples the signal at 16.3676 MHz, using one bit per sample.

The digital IF samples were transferred via a USB interface to a PC, where they could be either stored in memory or processed in real-time with the N-GENE receiver, a prototype fully software receiver developed by our group and used in our research activities. Postprocessing of the stored data collections was done both with N-GENE and with ad hoc routines developed using a commercial high-level technical computing language and interactive environment.

Because the day and time of the IOVs’ navigation signal switch-on were unknown, we ran an automatic procedure that searched all Galileo code numbers every 10 minutes. At each search, the N-GENE software receiver calculated the cross-ambiguity function (CAF) of the received signal with local codes and a variable Doppler shift within ±7 kilohertz.

When the receiver recognized a valid acquisition peak in the CAF, it displayed an alert message on the PC’s screen and a two-minute data collection of raw samples — accurately time-stamped — was stored on disk.

We checked the system in lab during working hours and were able to remotely control the system 24/7. Furthermore, we configured the system to send an alert to NavSAS team members’ mobile phones in case of successful signal acquisition.

The front-end used to collect E5 data sets follows the block diagram of Figure 1 and was built in lab with commercial off-the-shelf (COTS) components (more details can be found in the Manufacturers section near the end of this article).

The RF signal from the antenna was first amplified and filtered, before being converted to an intermediate frequency of 225 megahertz. The signal was then further amplified and sent to the anti-aliasing filter with a bandwidth equal to 18 megahertz. The signal was then sampled at 39 megahertz, quantized over eight bits, and recorded on disk through the USB interface.

The described front-end is a laboratory prototype, that can be configured to receive both E5a and E5b, inserting the proper RF filter and setting the correspondent local oscillator frequency, which in our case was an external local oscillator.

In the following sections, the results of the processing of E1 and E5 Galileo data collections are shown and commented.

E1 Signal Processing Results
This section reports the most relevant results obtained from the E1 signal, recorded during the afternoon of December 12 (CET). We start with the acquisition results, then we show the estimated carrier-to-noise power density ratio (C/N0) and Doppler profiles. At the end, we discuss the outcomes of navigation message decoding.

Signal Acquisition. Figure 2 shows some of the results obtained performing the signal acquisition over several data sets. The CAFs, plotted on the left column, are computed over the acquisition search space defined along two dimensions: code delays and Doppler frequency shifts. These CAFs are obtained performing 11 noncoherent accumulations of four-millisecond coherent integration times.

On the right-hand side, the figure displays the signal correlations along the code delay axis, for a fixed value of Doppler shift corresponding to the maximum of the CAF. Here, the profile of the typical BOC(1,1) autocorrelation function is expected to emerge, at least for medium-high values of C/N0 ratio.

First, Figure 2a shows the CAF over the whole search space during a trial that started at 14:36 CET. No correlation peaks emerge clearly yet.

The following trial (Figure 2b), initiated at 14:46 CET, successfully reveals the presence of the Galileo signal: the correlation peak rises above the noise floor. In this case, the code correlation function (see right-hand panel) is not clear enough to recognize the typical BOC(1,1) autocorrelation shape, as the side peaks are buried in the noise floor.

Consequently, we expected to measure a low C/N0 for the signal of such a data set.

From 14:46 to 17:06 CET, the trials were all successful in terms of valid acquisition peak, recognized in each acquisition run. Figure 2c and Figure 2d present two other examples of CAF, corresponding to the datasets of 15:46 and 17:06 CET respectively.

Note that, in these cases, the BOC(1,1) autocorrelation profile is visible in the code correlation in the right-hand panel. Indeed, in these cases we expect to find higher C/N0 values.

C/N0 estimates. Once the receiver began operating in the tracking mode, we were able to estimate the C/N0 ratio of the satellite signal at the receiving antenna. Figure 3 shows the time sequence of the estimated C/N0 during the 10 seconds following signal acquisition for the datasets collected and recorded at 14:46, 15:46, and 17:06, respectively.

One can observe that the profiles are nearly constant throughout the 10-second periods. Furthermore, it is interesting to notice that the average values of the three profiles (namely, 31 dB-Hz, 44 dB-Hz, and 42 dB-Hz) meet our initial hypothesis on the C/N0 trend, based on the simple observation of the corresponding code correlation profiles in Figure 2.

Doppler Profiles. Figure 4 presents a third measure of the successful tracking experiment by plotting the Doppler frequency as estimated by the phase lock loop (PLL) along a one-minute time interval for the data collections started at 14:46 and 17:06, and along a 10-minute time interval for the data collection that began at 15:46.

In all the three cases the PLL correctly tracks the Galileo signal and provides a good estimate of the Doppler frequency. An incidental note: as the satellite passes through the sky over Torino and the satellite/receiver line-of-sight angle changes accordingly, the estimated Doppler frequency decreases.

Combined observation of C/N0 and Doppler profiles provided some additional insights about the transmitting satellite. For example, we can see that the Doppler estimate was quite noisy (Figure 4a) in the data collection of 14:46, because the corresponding C/N0 was low (Figure 3a). In contrast, the data collections of 15:46 and 17:06 show a higher C/N0 (Figure 3b and Figure 3c) and a more accurate Doppler estimate (Figure 4b and Figure 4c).

Identifying the Transmitting Satellite
Because two IOV satellites — PFM and Flight Model 2 (FM2) — were launched simultaneously on October 21 and were relatively close together in the same orbital plane, they were both visible at the same time during much of the observation period. However, the rooftop antenna at ISMB used to receive the signal was non-directional and consequently provided no spatial information to help us determine which satellite was likely transmitting.

However, knowing the satellite elevation during each data collection period usually helps to make preliminary assessments of the quality of the received signal. To overcome this lack of information, we tried to get more insight about the identity of the transmitting satellite by observing the estimates of the Doppler and C/N0 profiles with respect to the elevation pattern of the two possible transmitters.

Figure 5 shows the elevation patterns of Galileo-PFM and Galileo-FM2 during the afternoon of December 12, as obtained from prediction visibilities based on NORAD tracking information (two-line elements of Galileo satellites downloaded on 12/12/2011 from the CelesTrack website). Figure 6 shows both the estimated Doppler and C/N0 profiles during the same time interval.

Direct comparison of Figure 5 and Figure 6 enabled us to observe a quite clear correspondence of the signal measurements with the elevation pattern of Galileo-PFM: as long as the satellite raises over the horizon, the Doppler estimate decreases from about 2300 Hz to less than -100 Hz, while the C/N0 estimates increase from about 30 dB-Hz to about 43 dB-Hz. On the contrary, these patterns are incompatible with the path of GALILEO-FM2.

Navigation Data & Message Decoding
Figure 7 shows a sample of the tracking output, namely the in-phase part of the “prompt” correlation of both E1B and E1C signals.

Table 1 reports the results of navigation message decoding on E1B and the comparison with the structure of a complete frame of the navigation message described in the Galileo interface control document (ICD).

In order to have another term of reference, we also compared the results with those obtained processing a data set taken at the Germany’s Galileo Test and Development Environment (GATE) several months ago, using the same software receiver.

In the signal received from the Galileo satellite, the receiver demodulated two types of page only: reserved (word type field with value 63) and type 0 (spare). Word 0 contains information about the Galileo system week number (WN) and time of week (TOW). The receiver found a WN equal to 642 and an initial TOW equal to 136047. In Table 2, a sample text log of the decoding procedure is also included.

Processing the E5 Signal
The following section will present some results obtained from processing the stored data collections recorded in the morning of December 14, 2011, on the E5 band.

Signal Acquisition. Figure 8 shows results obtained by performing signal acquisition on two sets of E5 data, from the data channels E5a-I and E5b-I, respectively. The CAFs, plotted in the left-hand panels, are computed over the 2D acquisition search space; on the right side, the figure shows signal correlations along the code delay axis for a fixed value of Doppler shift corresponding to the CAF maximum.

In particular, Figure 8a shows the acquisition results over the whole search space obtained processing the dataset on E5a-I, starting at 10:53 CET; Figure 8b shows the same plot related to the data acquired on E5b-I, at 11:08 CET.

Both the trials reveal the presence of the Galileo signal, in terms of valid acquisition peaks. It is worth noticing that, in these cases, the BPSK autocorrelation profile is visible in the code correlations in the right-hand panels.

C/N0 estimates. As in the previous case, described in Section 2, once the receiver entered the tracking mode, we could estimate the C/N0 ratio of the satellite signal at the receiving antenna. Figure 9 shows the estimated C/N0 during eight seconds of the data collections recorded at 10:53 and 11:08, respectively. Again, one can observe that the profiles are nearly constant throughout the collection period.

Pilot Verification. The E1C signal contains a periodic pilot sequence of 25 secondary code chips. We verified the consistency of the tracking output over the received signal (see Figure 7) with the pilot sequence described in the ICD. A graphical representation of such a comparison is shown in Figure 10.

Joint GPS+Galileo Position Solution
In order to check both the accuracy of the ephemeris broadcast by the Galileo satellite and the possibility of combining GPS and Galileo observations to obtain a joint position, velocity, and time (PVT) solution, we performed a data collection in static condition on December 21, 2011, at 09:48:00. A snapshot of all the satellites in view at the time of the experiment and used for the PVT is reported in Figure 11.

As we can see from Figure 11, the elevation of the Galileo satellite was of 40.9 degrees; its decoded ephemeris has been reported in Table 2.

By using our N-GENE software receiver we were able to test the joint PVT computation algorithm. In details, two different scenarios have been considered for the PVT solution: in the first one, only the GPS satellites (PRN #3, 6, 16, 18, 22, 30) were taken into account, on the basis of the best GDOP (geometrical dilution of precision) obtainable, while in the second case also the Galileo PFM satellite was included. This inclusion led to a slight improvement of the overall GDOP.

Figure 12 reports the estimated position computed by using the two aforementioned satellites scenarios, as well as the error of the PVT solution with respect to the position of the georeferenced antenna, placed on the roof of the ISMB building. Notice that the position solution provided by N-GENE was based on code-phase measurements only: this is the reason for a certain spread of the obtained estimates.

Figure12b clearly shows how the Galileo measurements contribute to reducing the error of the PVT solution with respect to the case of the GPS stand-alone, thanks to the additional satellite that improved the global satellite geometry. In the case of a combined GPS+Galileo PVT solution, the error is always confined within six meters, while in the GPS-only scenario we have instants where the estimated position is more than eight meters away from the true position.

More studies need to be carried out to really understand the benefit of using a Galileo satellite in the PVT, but, from now on, a Galileo-ready GNSS receiver has the opportunity to take one more satellite in the PVT computation and it can decide whether to exploit it or not.

Conclusions
In this article we have shown the first results from working with the IOV Galileo signals. We verified the transmission of the Galileo Code Number 11 from the Galileo-PFM satellite in the afternoon of December 12, 2011. We also demonstrated successful acquisition, tracking, and data demodulation of the E1 signal on both data and pilot channels, using a GPS+Galileo software receiver, whereas the navigation message, although compatible with the ICD structure, were in dummy mode.

Thanks to our observations, we were able to detect also the presence of the signal on the E5 band in the morning of December 14, 2011. We received the signal with a lab front-end prototype, storing raw samples on disk for postprocessing analysis. We were able to successfully acquire and track the signals on both E5a and E5b bands.

Finally, on December 21, 2011, we were able to observe a complete and valid navigation message and to successfully perform the first joint GPS+Galileo PVT solution.

Additional Resources
[1] CelesTrack website, NORAD Two-Line Element Sets, current data for Galileo satellites available here
[2] Falletti, E., and M. Pini, L. Lo Presti, and D. Margaria, "Assessment on Low Complexity C/N0 Estimators Based on M-PSK Signal Model for GNSS Receivers," in Position, Location and Navigation Symposium, 2008 IEEE/ION, pp. 167–172, May 5–8, 2008
[3] Fantino, M., and A. Molino and M. Nicola, "N-GENE GNSS Receiver: Benefits of Software Radio in Navigation," in Proceedings of the European Navigation Conference ENC 2009, Napoli (Italy), May 3–6, 2009
[4] Fernandez-Prades, C., and L. Lo Presti and E. Falletti, "Satellite Radiolocalization from GPS to GNSS and Beyond: Novel Technologies and Applications for Civil Mass Market," in Proceedings of the IEEE, vol. 99, no. 11, pp. 1882–1904, November 2011
[5] Galileo Test and Development Environment website
[6] Galileo Open Service Signal in Space Interface Control Document (OS SIS ICD), Issue 1.1, September 2010

Manufacturers

The commercial GPS/Galileo front-end used in the experimental setup for E1 signal acquisition was a SE4120L GNSS radio front-end IC from SiGe Semiconductor, Inc., Andover, MA, Canada (now Skyworks Solutions, Inc., Woburn, Massachusetts, USA). The prototype front-end for the E5 data recording sessions was built at the NavSAS lab with COTS components from Mini-Circuits, Inc., Brooklyn, New York, USA, and TTE, Inc., Los Angeles, California, USA.

Some of the data presented in this article was plotted using MATLAB from The Mathworks, Inc., Natick, Massachusetts, USA. The aerial imagery in Figure 12 used Google Earth, from Google, Inc., Mountain View, California, USA.
