A Search for Spectrum
GNSS Signals in S-Band, Part 1

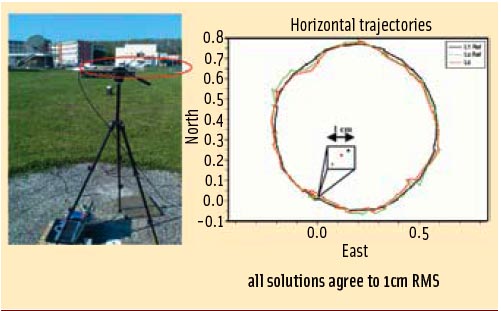

FIGURE 1: Example of accuracy close to one centimeter provided by the integer ambiguity resolution on undifferenced phase (IARUP) technique using GPS L1 and L2 signals (Click image to enlarge.)
Working Papers explore the technical and scientific themes that underpin GNSS programs and applications. This regular column is coordinated by Prof. Dr.-Ing. Günter Hein. Contact Prof. Hein at Guenter.Hein@unibw-muenchen.de

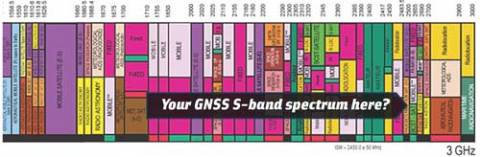

Frequency allocations suitable for GNSS services are getting crowded. System providers face an ever tougher job as they try to bring on new signals and services while maintaining RF compatibility and, in some cases, spectral separation. This two-part column explores the possibility, advantages, and disadvantages of using allocations in a portion of the S-band spectrum.
In recent years, researchers have explored possible new allocations for Radio Determination Satellite Service (RDSS) and Radio Navigation Satellite Service (RNSS) spectrum from a regulatory point of view. These studies have mainly discussed S-band and C-band in addition to L-band.
The International Telecommunications Union (ITU) Radio Regulations define RNSS as a subset of RDSS. Although the allocations are differentiated — RDSS usually has a paired uplink — both can actually be used for satellite navigation.
The eventual need of GNSS systems for additional frequency resources or signals in S-band and/or C-band is not driven by the desire to improve the pseudoranging or timing performance, but primarily to introduce alternative and complementary capabilities to those services already offered by systems now in operation or under development.
In fact, GNSS pseudoranging or timing performance could be improved with availability of new code division multiple access (CDMA) signals in the upper L-band alone. These could be defined in the so-called E1+G1 band, for example, where some room is still available if compatibility with the adjacent radio astronomy band and GLONASS could be achieved.
In any case, any signal occupying the whole E1/G1 band would have to be backward-compatible and symmetrical in spectrum and correlation characteristics to avoid creating pseudoranging bias. Furthermore, having a very wide band signal in the lower and upper L-bands would potentially allow significant improvement in terms of pseudoranging performance thanks to the very accurate dual-frequency, wideband ionospheric correction and raw pseudoranges that would be available.
In fact, this is the only way for any new signal to significantly improve the pseudoranging performance, because C-band today is only 20 MHz wide (5010–5030 MHz) and S-band is restricted to 16.5 MHz (2491.75 MHz ±8.25 MHz.
“Note that an alternate binary offset carrier with CBOC on each side — that we could define as AltBOC(15, CBOC), for example — or an equivalent signal filtered in the E1/G1 band could by itself prove superior in terms of accuracy compared to the current multiplexed BOC (MBOC) planned for Galileo E1 and GPS L1, while still preserving the necessary backward compatibility with a composite BOC (CBOC) in E1.
In principle, another very important field for improving accuracy worldwide without the need of extra frequency bands (that is, in addition to L-band) is a technique called integer ambiguity resolution on undifferenced phase (IARUP) or possible equivalent techniques, which will allow very precise positioning accuracies close to a few centimeters in real time (Figure 1, see inset, above).
IARUP is described further in the paper by D. Laurichesse and F. Mercier listed in the Additional Resources section at the end of this article. (We should point out that such techniques are also known by the acronym PPP-Wizard, standing for “Precise Point Positioning With Integer Zero-difference Ambiguity Resolution Demonstration.”)
Having this in mind and recalling that our objective is to focus on S-band, alternative solutions that employ C-band and/or G1/G2. L-band will not be discussed further in this article, except for the relevant L/S-band link budget comparisons.
Regarding C-band, several studies have been undertaken in recent years to investigate the suitability of this frequency band for GNSS purposes and possible alternatives for a signal baseline, mainly in the framework of the European Space Agency’s GNSS Evolution Program. (The interested reader can refer to the papers by J. A. Avila-Rodriguez et alia (2008b) and A. Schmitz-Peiffer et alia listed in Additional Resources.)
This two-part column will show that potential new services in S-band are technically feasible, from the perspectives of link budget and radio frequency compatibility. We must also underline the fact that the results presented in this column neither pretend to cover the whole palette of GNSS signals and frequency resources that could be discussed, nor pretend to be an official baseline for an evolved Galileo system.
Future developments could be in different or complementary directions to those that we will discuss here. Having said this, we recall that the main objective of the authors is to open a constructive discussion on where GNSS could evolve to. The first part of this column will take up the issues of S-band’s potential for GNSS operations, presenting results of several comparative technical analyses.
Part 2, which will follow in the October issue of Inside GNSS, will focus on the subject of compatibility and interoperability with other systems operating at S-band as well as signal modulations that might work well for GNSS services there.
Potential Benefits of S-band for Navigation
Moreover, Globalstar, a low Earth orbit (LEO) mobile telecommunication constellation, also applies S-band Doppler compensation based on radio links between the ground and the LEO satellites in addition to its GPS on-board real-time orbit determination and synchronization. Further, the new functions and services provided by S-band are rather tighter hybridizations between mobile communication services and navigation services.
The list of imaginable applications based on the combined use of S- and L-band or S-band alone is a lengthy one, including the following:
All these applications might be satisfied by a single signal, hosting several services simultaneously. Up till now, no need for two different Galileo waveforms and spectrum in S-band has been identified. However, this does not mean that an eventual Galileo S-band signal should necessarily have only one main lobe.
It is worth noting that L/S-band frequency was selected for low-cost radio development (commercial wireless technology) in a GPS IIF SAR low-cost design study involving a 2.4 GHz downlink. S-band is also used for satellite formation flying RF GNSS technology, using GPS-like C/A codes. The potential services to be provided by Galileo in a hypothetical future S-band system are still under study.
The Galileo OS Signal-in-Space Interface Control Document (ICD) sets a minimum received power of -157.25 dBW for its open service on E1 at an elevation angle of five degrees. Table 1 shows that an effective isotropic radiated power (EIRP) of 33.7 dBW would need to be transmitted in S-band to obtain the same power on the ground, which represents an increase of four decibels from what is required in E1. This is needed in order to compensate for the higher free-space losses in S-band.
In order to assess pseudorange accuracy, the signal modulation has to be taken into account. We considered five different possible alternatives:
In the second part of this column to be found in the October Issue of Inside GNSS, we explore the use of orthogonal frequency division multiplex (OFDM) modulation.
For each of the modulations considered here, we have calculated the power that is required to be transmitted to obtain the same raw thermal noise pseudorange error as that of E1 OS.
In order to calculate the minimum required carrier-to-noise density ratio (C/N0) for a given thermal noise value, we followed the same approach as that described in the paper by M. Paonni et alia cited in Additional Resources, where the code tracking error is calculated with the theory presented in the referenced article by J. Betz.
The steady state code tracking error expressed in terms of the standard deviation of the thermal noise jitter σDLLt [chips] adopts the following form for the particular case of a non-coherent early-late discriminator:
where Tc is the chip period, BDLL is the delay-locked loop (DLL) bandwidth, B is the double-sided RF front-end bandwidth, T is the coherent integration time, C/N0 is the carrier-to-noise density ratio, and Gs(f) is the power spectral density of the signal.
We begin by calculating the thermal noise for the Galileo E1 OS signal. To do this, a value of signal-to-noise ratio is needed, which we obtained using the link budget presented in Table 2. In this link budget a receiver antenna gain of -3 decibels and implementation losses of 2 decibels have been considered.
As can be read in the table, a C/N0 of 39.25 dBHz has been obtained. Using this value, the pseudorange error has been also calculated using the previously introduced expression. Considering a coherent integration time of four milliseconds, a loop bandwidth of one hertz, a 12.27 megahertz front-end bandwidth and a 0.1-chip spacing, this calculation produces a code noise of 0.25 meter.
The idea that has been used in order to introduce new signals for the S-Band is to fix the minimum transmitted power for each signal so that the ranging performance is always at least equal to that of the Galileo E1 OS. Therefore, the C/N0 required for each of the considered modulations in S-band can be deduced by the value just calculated. In the case of CBOC it will be the same as for E1 (as the pseudorange error does not vary with the carrier frequency), namely 39.25 dBHz.
For the other modulations the C/N0 has been obtained simply by inverting the thermal noise jitter expression. A chip spacing of 0.1 chips and a front-end bandwidth of 16.5 megahertz have been used to produce the results.
Once the C/N0 is determined, the required transmitted power is calculated making a reverse link budget calculation. Table 3 summarizes the obtained results.
Note that Table 3 shows a minimum EIRP for the BPSK(8) signal that is higher than the values calculated to guarantee the minimum required C/N0. This is because a minimum received power on the ground of -157.25 dBW also has to be guaranteed, and this leads to a minimum EIRP of 33.7 dBW.
Therefore, for BPSK(8) modulations the limiting factor for the transmitted power is the received power on the ground, while for BOC(1,1), BPSK(1), and BPSK(4) it is the pseudorange accuracy, which is consistent with the fact that the pseudorange error decreases as the signal bandwidth increases.
Table 4 summarizes the obtained values for the transmitted power, as well as the corresponding maximum power flux density (PFD) level on the ground within the band, which has been calculated through integration of one megahertz of the signal’s power spectral density (PSD) around the maximum of its main lobe.
In order to complete the performance comparison between the different modulations under study, we also undertook an analysis of the multipath resistance performance. Multipath error envelopes and their running averages have been assessed for the various signals with the results shown in Figure 3 and Figure 4.
As can be seen in these plots, for short multipath the CBOC modulation outperforms all the other solutions studied here, while BPSK(8) performs best when considering multipath with a longer delay. This result comes as no surprise, because CBOC performs better than the BPSK(4) and even better than the BPSK(8) for short multipath due to its front-end bandwidth of 16.5 megahertz.
The advantage of the higher chip rate of the BPSK(4) and BPSK(8) is more than offset by the quite narrow receiver bandwidth that has been assumed. We can also observe this by plotting the Cramer-Rao Lower Bound for the five signals, as represented in Figure 5.
One would have expected that, given the higher chip rate of the BPSK(4) and BPSK(8) signals , the ranging performance of the CBOC(6,1,1/11) modulation should be much worse. This is not happening because the performances are not analyzed in terms of infinite bandwidth but instead for signals filtered over the available bandwidth. Consequently, the filtering losses that the two BPSK signals are experiencing worsen their ranging performance.
Conclusion and Further Work
For such a given power flux, the wider the band occupied by the main lobe(s), e.g, for BPSK(8), the higher the received power — and, therefore, the higher the indoor penetration — would be. As a result, wideband modulations that generate small multipath errors for reflections coming from various sides of a building are more interesting to consider for indoor applications.
Another possible signal design criteria is interoperability with open or commercial signals of other systems, such as the planned Indian Regional Navigation Satellite System (IRNSS) and/or Globalstar. These two examples of signal design criteria — efficacy in indoor environments, interoperability with other system(s) — might be met by employing multiple main-lobe signals.
Satisfying all the required signal design criteria would be much complicated if two different GNSS waveform and spectrum, associated to separated services, would have to be fitted in S-band. This difficulty would be compounded by the need to preserve a certain spectral separation with non-interoperable services provided by other GNSS systems in S-band, such a spectral separation being another signal design criterion.
Taking into account all these signal design criteria, and not only the two ones considered in Table 4, a reasonable PFD limit for a GNSS signal in S-band seems to be close to – 126 dBW/MHz/m².
In Part 2 of this column on S-band and GNSS, we will return to the subject of inter-system interference and interoperability, with particular attention on Globalstar. We will also consider the OFDM modulation further as a candidate GNSS signal design element in S-band.
Anthony R. Pratt
