GLONASS Ambiguity Resolution

“GNSS Solutions” is a regular column featuring questions and answers about technical aspects of GNSS. Readers are invited to send their questions to the columnist, Dr. Mark Petovello, Department of Geomatics Engineering, University of Calgary, who will find experts to answer them. mark.petovello@ucalgary.ca

Share via: SlashdotSlashdot   TechnoratiTechnorati   GLONASS Ambiguity Resolution (Inside GNSS)TwitterTwitter   FacebookFacebook

Q: What are the challenges associated with GLONASS (FDMA) ambiguity resolution and how are they addressed?

A: While the GNSS industry eagerly awaits the introduction of new global navigation satellite systems such as Galileo and Compass, the Russian Federation has been steadily modernizing its GLONASS system.

At the time of writing, 20 GLONASS satellites are in orbit. With launches of six more satellites scheduled this year, a fully operational constellation of 24 satellites could be realized by early 2010.

GLONASS, like GPS, broadcasts carrier phase signals in the L1 and L2 frequency bands. Each GLONASS satellite broadcasts its signals on slightly different frequencies within a given L-band using a technique known as frequency division multiple access (FDMA).

Conversely, the GPS signal structure is based on code division multiple access (CDMA) whereby all satellites transmit on the same L1 and L2 carrier frequencies. Each GLONASS satellite can be identified by its signal frequency while individual GPS satellites are distinguished by unique pseudorandom noise (PRN) codes transmitted with the navigation message.

Reliable resolution of the integer ambiguities inherent in the carrier phase measurements is the key to using GPS and GLONASS for high-precision (centimeter level) positioning applications, especially real-time applications.

However, the GLONASS ambiguity resolution process is more complicated compared to GPS because of the FDMA signal structure. The remainder of this discussion focuses on the challenges associated with GLONASS ambiguity resolution and how these challenges are addressed.

GPS ambiguities related to double-difference carrier phase observations are usually resolved in GPS data processing schemes. The double-difference technique effectively mitigates common errors introduced by the receiver and satellite hardware, including the receiver and satellite clocks, as well as the Earth’s atmosphere. Double-difference observations can be formed by subtracting two inter-station single-difference observations.

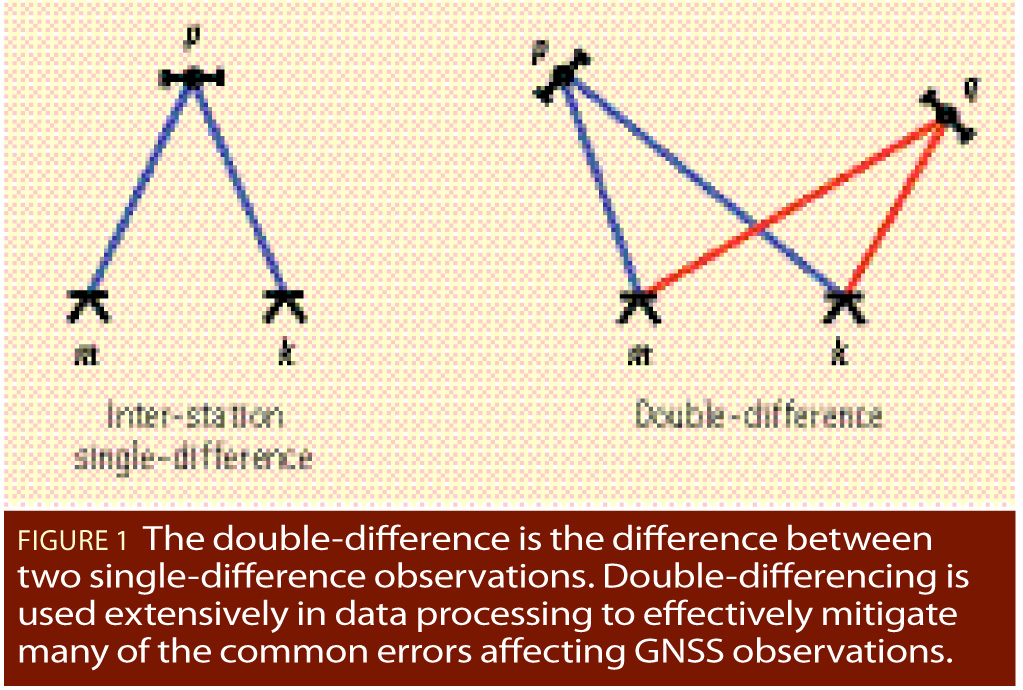

The inter-station single-difference is derived by subtracting measurements to the same satellite observed simultaneously at two stations. For example, the single-difference and double-difference involving reference station m, rover station k and satellites p and q are pictured in Figure 1 (above, right).

… We cannot simply estimate the single-difference reference ambiguity along with the double-difference ambiguity using only carrier phase measurements. This approach would lead to a singular solution with more unknowns than observations ...

… we can usually estimate the single-difference reference ambiguity with sufficient accuracy for reliable ambiguity resolution — if the same brand of receiver is used in the double-difference. However, residual receiver-dependent biases may cause a significant bias in the single-difference reference ambiguity estimate when different receiver types are involved ...

… the hardware and signal processing architecture of a receiver will introduce frequency-dependent biases in the pseudorange and carrier phase measurements. These variations in the measurements, which may be different for code and phase, are commonly known as inter-frequency biases ...

… The tracking channels in state-of-the-art GLONASS receivers may be calibrated to minimize the magnitude of these inter-frequency biases in the L1 and L2 observations. Furthermore, receiver-dependent biases are generally consistent for instruments developed by the same manufacturer ...

… biases may be attributed to real variations in GLONASS phase measurements introduced by the FDMA receiver architecture and apparent inter-frequency biases induced by an incorrect estimate of the single-difference reference ambiguity ...

… many software solutions do not attempt to fix GLONASS ambiguities if different receiver brands are involved. Instead, the inter-frequency biases are absorbed by the real-valued or float estimates of the GLONASS ambiguities ...

… Unlike antenna phase center variation (PCV) calibrations, no accepted standard calibration tables for receiver dependent biases currently exist in the public domain. Therefore, manufacturers normally calibrate different receiver brands against their own reference using proprietary techniques ...

. . .

In Summary
GLONASS (FDMA) double-difference carrier phase observations consist of a single-difference reference ambiguity term in addition to the usual double-difference ambiguity. Furthermore, GLONASS observations may be affected by inter-frequency biases. These two issues are not normally associated with GPS (CDMA) observations and will hinder or even prevent reliable ambiguity resolution if not handled correctly.

The Russian Federation plans to add CDMA signals to the GLONASS signal structure as part of its modernization program, beginning with the L3 frequency. However, Russian Space Agency officials have indicated that FDMA signals will be retained for the foreseeable future in order to ensure backward compatibility with FDMA-only receivers.

Therefore, the issues that affect GLONASS ambiguity resolution today will also be relevant in the future. Resolving the issues in practice is challenging, especially in real-time and when different receiver brands are involved.

Nevertheless, these issues are manageable and once they have been addressed, the addition of GLONASS observations in a high-precision GNSS solution can certainly improve positioning performance compared to GPS alone.

(For Frank Takac’s complete answer to this question, including formulas and tables, please download the full article using the pdf link above.)
